Product Details:
|
| Condition: | New | Driven Type: | Electric |
|---|---|---|---|
| Voltage: | 380V | Power: | 7.5kw |
| Place Of Origin: | China (Mainland) | Model Number: | WM-850A |
| Dimension(L*W*H): | 7800*1650*1300mm | Weight: | 1400kg |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Green And Grey |
| Usage: | Paper Gluing | Feeding Way: | Feeder Automaticly Continuesly Feeding |
| Speed: | 7-40pcs/min | Warranty: | One Year |
| Highlight: | automatic paper gluing machine,automatic box gluing machine,automatic gluing machine |
||

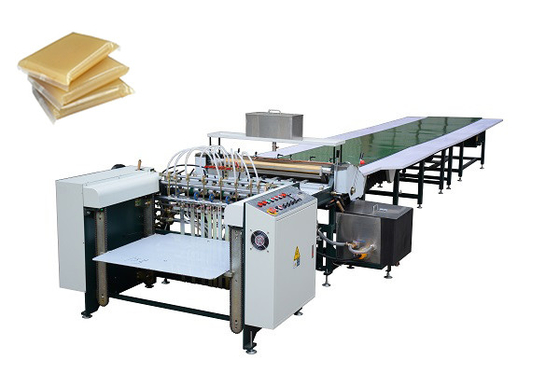

Auto Gluing Machine For Paper Gluing
Product Description
Automatic gluing machine is use for glue the paper for rigid box, paper box, hard cover, book cover, calendar , set up box and so on. This gluing machine is a transferring type of paper upper-side gluing equipment, combined with its own many-year experience about packing machinery, designed against the needs of the clients. it is characterized by rational structure, stable performance, convenient operation, easy replacement, and low labor intensity. it adopts heat fused adhesive powder to avoid traditional white emuision from shrinking and midew. It is an ideal equipment formedium and sized printing packing plants to make flow line production.
Product Features
1. It has the function of automatic feeding paper and gluing, automatic temperature control and 24-hours timer.
2. The draft fan under the assembly lines prevents cover paper from curling and bubbling.
3. Feeder absorption and feed are applied, which contribute to the characteristic of steady and quick paper conveyance.
4. Hot melt adhesives (animal adhesives) are used for health and environmental protection, and they also save cost because of the recycle system and the adjustable speeds.
Technical Parameters
| MODEL | WM-650A | WM-850A |
| WIDTH | W80-600MM | W80-800MM |
| PAPER THICKNESS | 80-200GSM | 80-200GSM |
| WORKING SPEED | 7-40PCS/MIN | 7-40PCS/MIN |
| POWER | 7.5KW | 7.5KW |
| AIR PRESSURE | 0.6-0.8MPa | 0.6-0.8MPa |
| VOLTAGE | 380V/50HZ | 380V/50HZ |
| MACHINE WEIGHT | 1200KG | 1400KG |
| MACHINE SIZE | 7800*1450*1300MM | 7800*1650*1300MM |
Key Word
Product Application
This machine has an indirect heating and temperature control system, which can be applied to the place where the working environment is low. The system models can be assembled into various forms of assembly line according to the needs of the product. This machine can be applied into folders, file boxes, clothing box, shoes box, hardcover and other products. This machine has high efficiency; adaptabolity, hot meltadhesive, glue, latex can be used. Variable speed, no wear, no deformation, feeding, high precision.
Our Services
1. OEM Manufacturing welcome
2. We can make auto or semi-auto machine according to your requests.
3. We will reply you for your inquiry in 24 hours.
4. We will take video for you when your machine is done.
5. We will provide good after-sales service. If you have any questions or problem, contact with us, we will offer the solve way for you. If you need, our engineer can go to your factory to serve.
Our Exhibitions
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood box. Suitable for exporting.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos and video of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your down payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to my requests?
A: Yes, we can produce accordint to your requests. We can design and develop the machine.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
